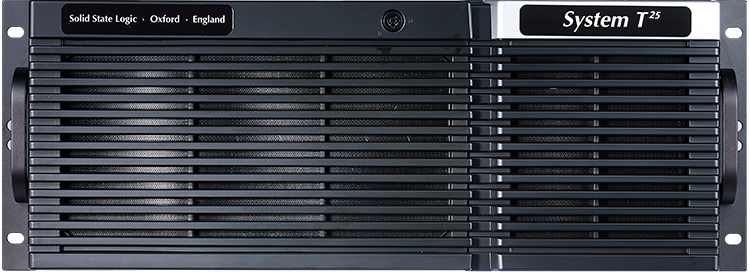

T25 Tempest Engine

SSL's patented Optimal Core Processing technology

256 path capacity

Tempest processor engines deploy SSL’s patented Optimal Core Processing (OCP) software using arrayed industrial PC hardware in a controlled operating environment. Housed in a 4RU chassis there are two different Engines available, The T25 (offering 256 path capacity) and T80 (offering 800 path capacity). Paths and processing can be dynamically allocated in real time without interrupting audio.

With 3072 inputs and 3072 outputs per engine, System T can handle any large-scale production. Tempest engines can be deployed as mirrored redundant pairs and if required each engine can be placed in separate fire zones. Near instant audio changeover happens via up to 6 Network I/O HC bridging cards, each providing 512 channels of inputs and 512 outputs.

  • Path pool - 256
  • Path processing pool - 256 Dyn, 256 EQ, 128 Delay
  • Inputs & outputs - Up to 3072
  • Redundancy
  • SSL's patented Optimal Core Processing Technology

T25 Tempest Engine - Documents

Associated software and firmware downloads for this product are available here

System T Brochure
