Net I/O N256

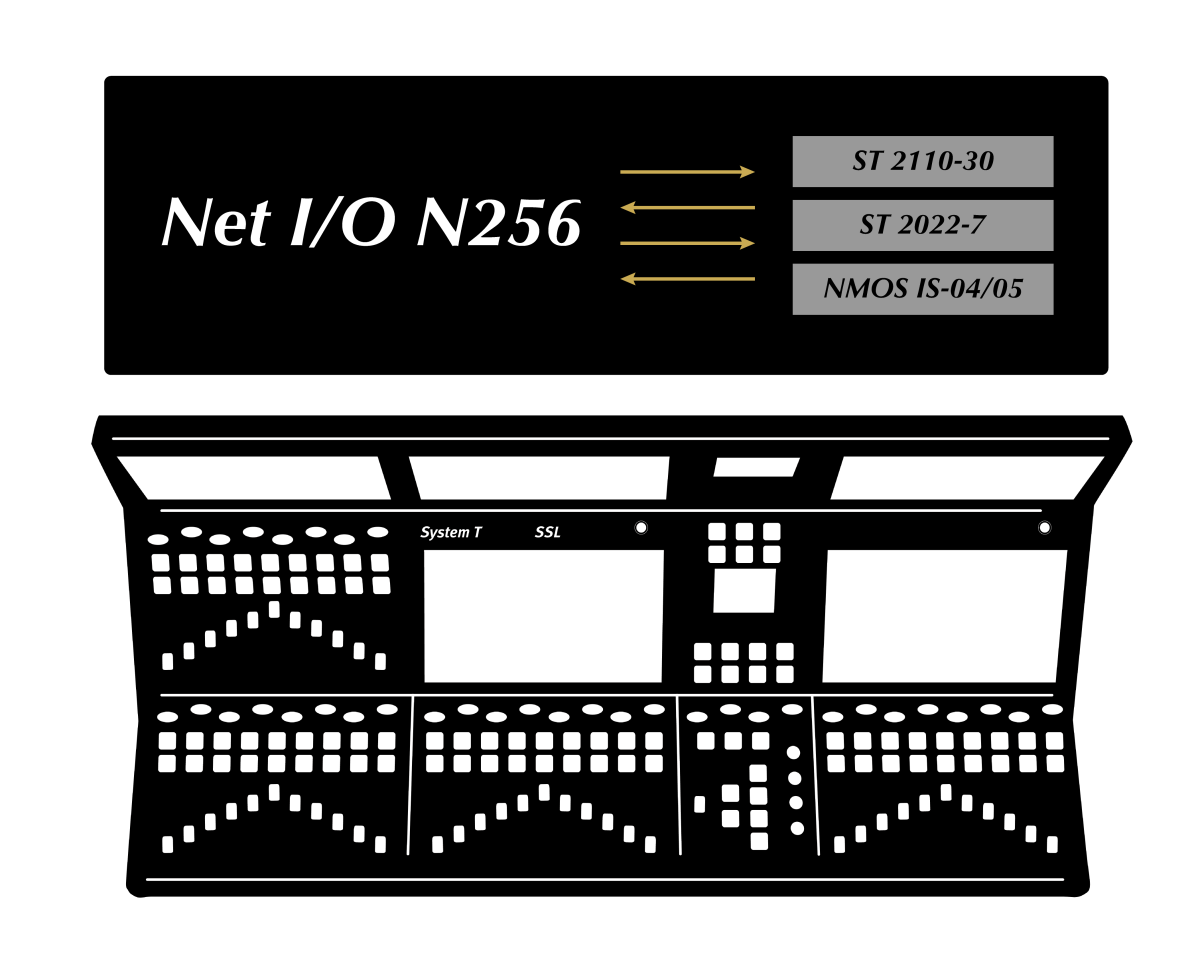

Net I/O N256 is a 256 channel interface for connecting System T with ST 2110 networks. Each N256 provides up to 128 Tx and 128 Rx ST 2110-30 streams, including full support for ST 2110-30 Level A, B and C streams and ST 2022-7 stream redundancy. NMOS IS-04 and IS-05 capability is included for discovery and connection management, or the SSL Connect application (accessed via web browser) can be used for centralised stream configuration, routing control and channel mapping. Network separation provides a firewall between console and ST 2110 networks, simplifying integration requirements. N256 includes redundant network connectivity and dual power supplies.

256 Tx and 256 Rx audio channels
128 Tx and 128 Rx streams
Full support for ST 2110-30 Level A, B and C streams
Full support for ST 2022-7 stream redundancy
NMOS IS-04 and IS-05 compatibility for discovery and connection management
Supports source-specific multicast (SSM)
Redundant network connections and PSUs
